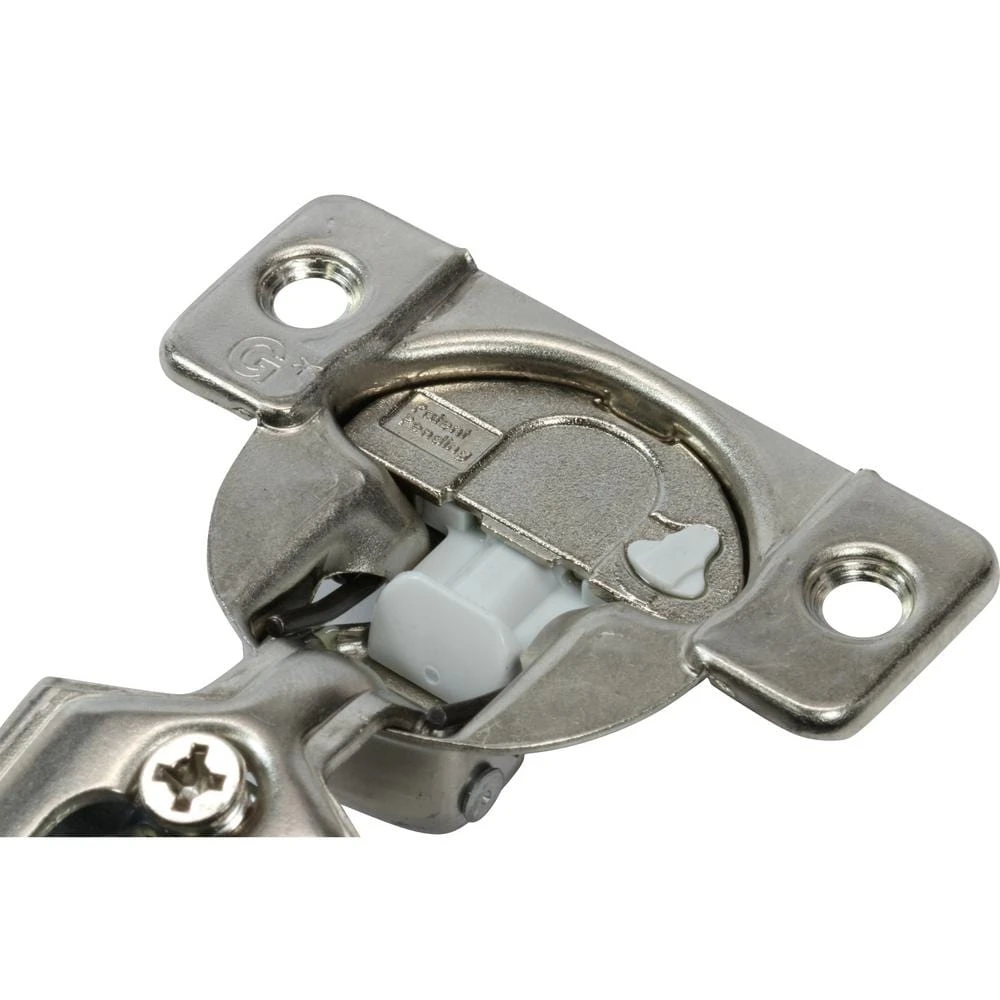

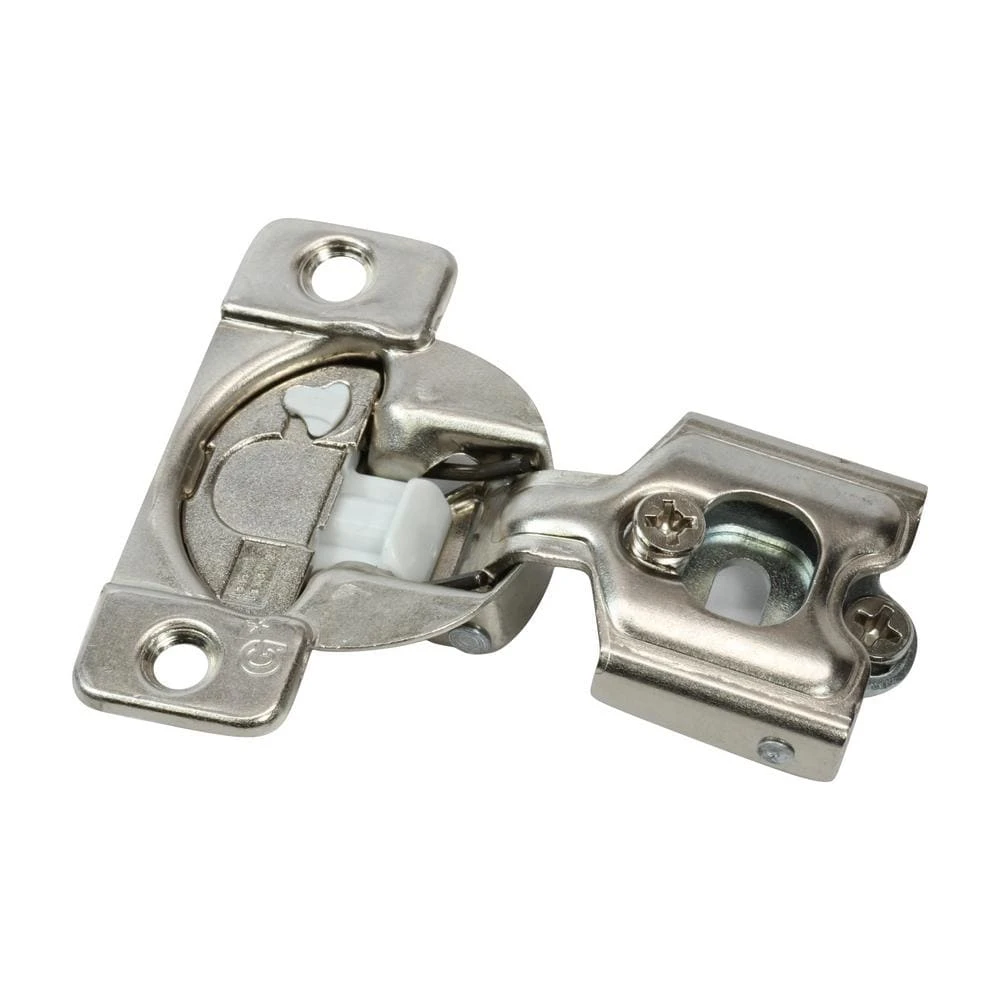

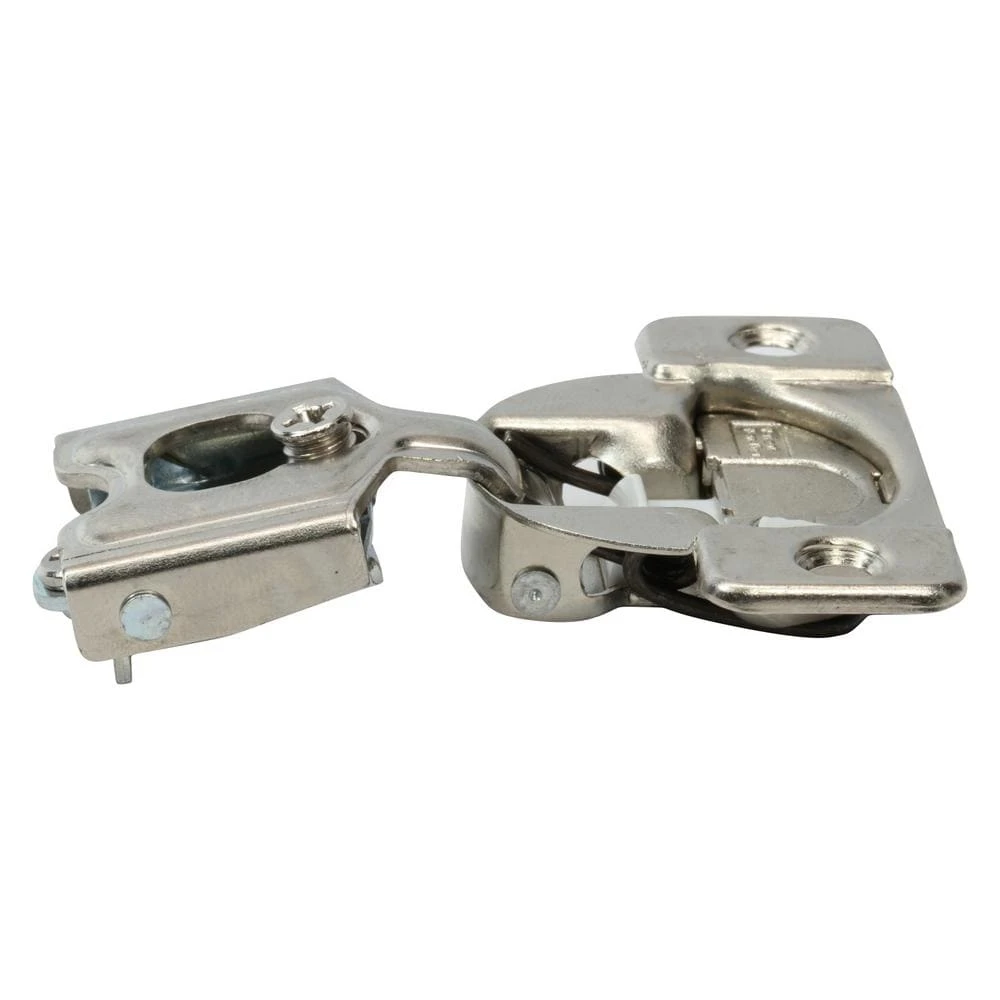

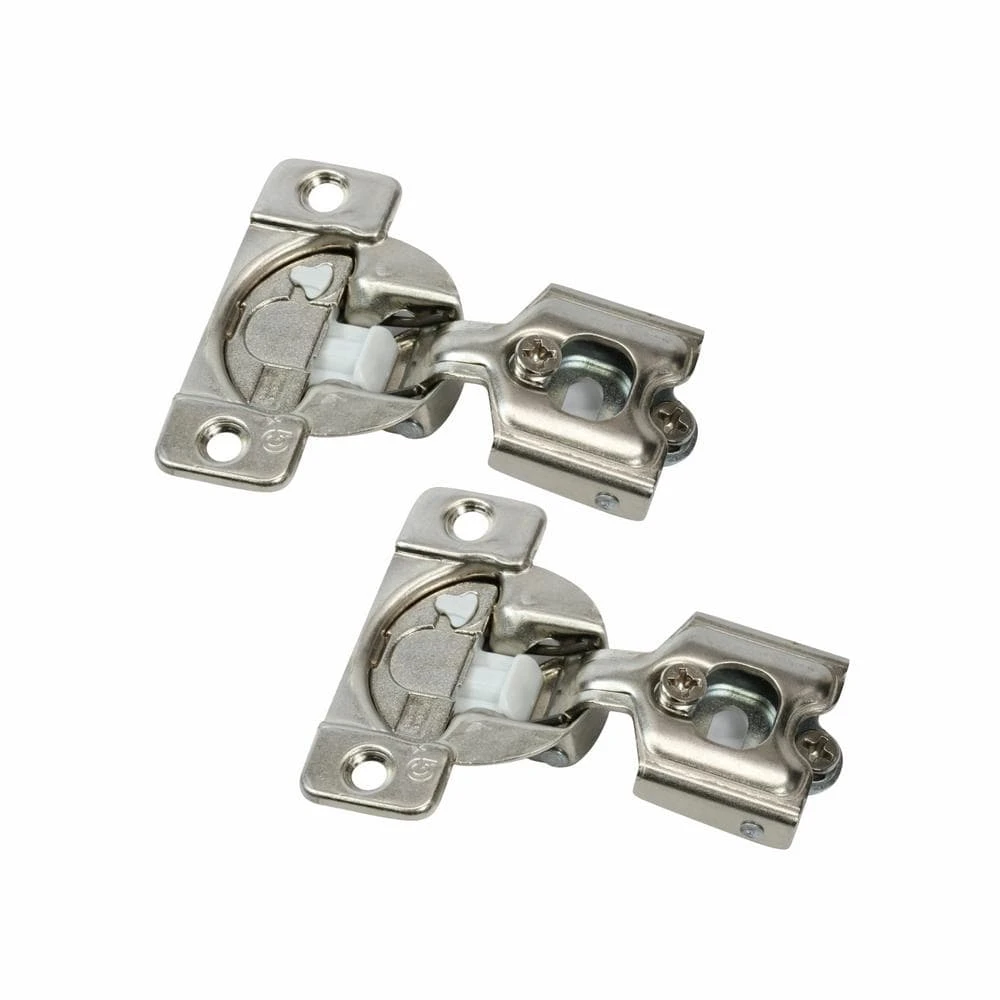

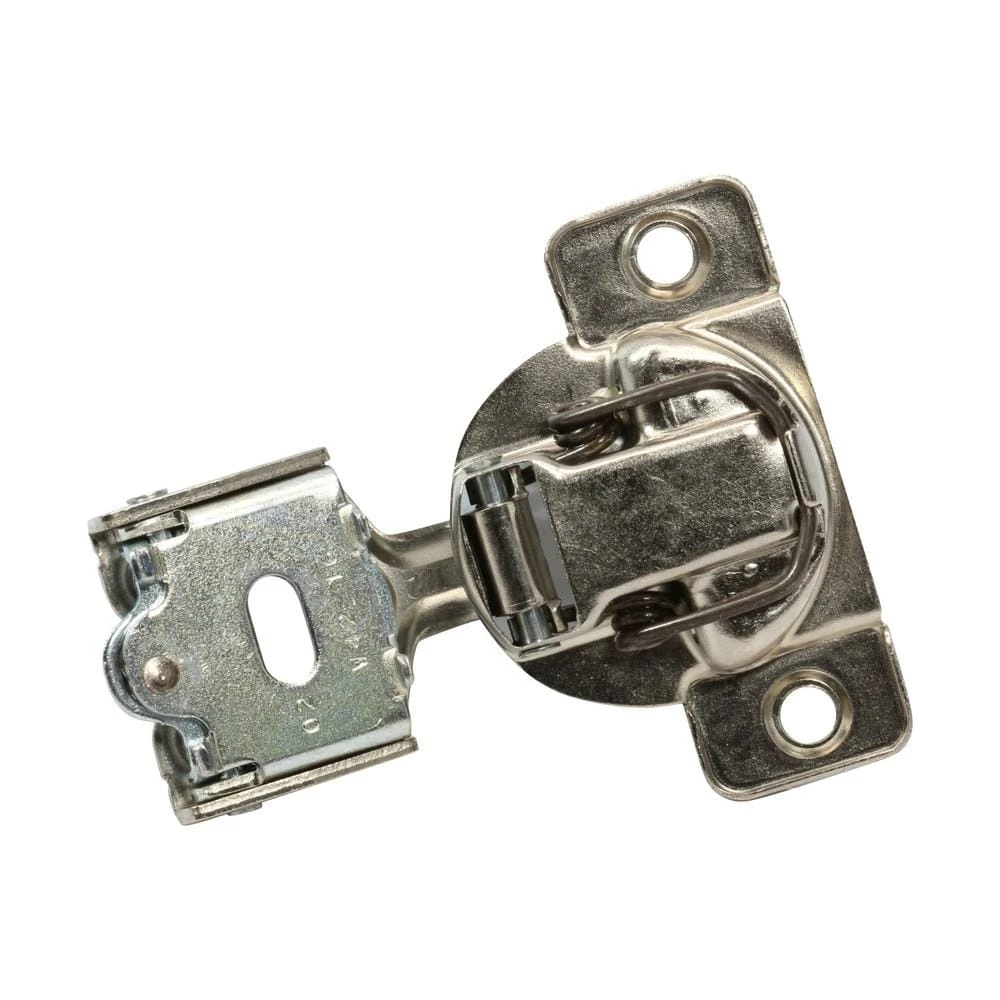

1/2 In. (35 Mm) Overlay 108-Degree Soft Close Face Frame Cabinet Hinge (50-Pack)

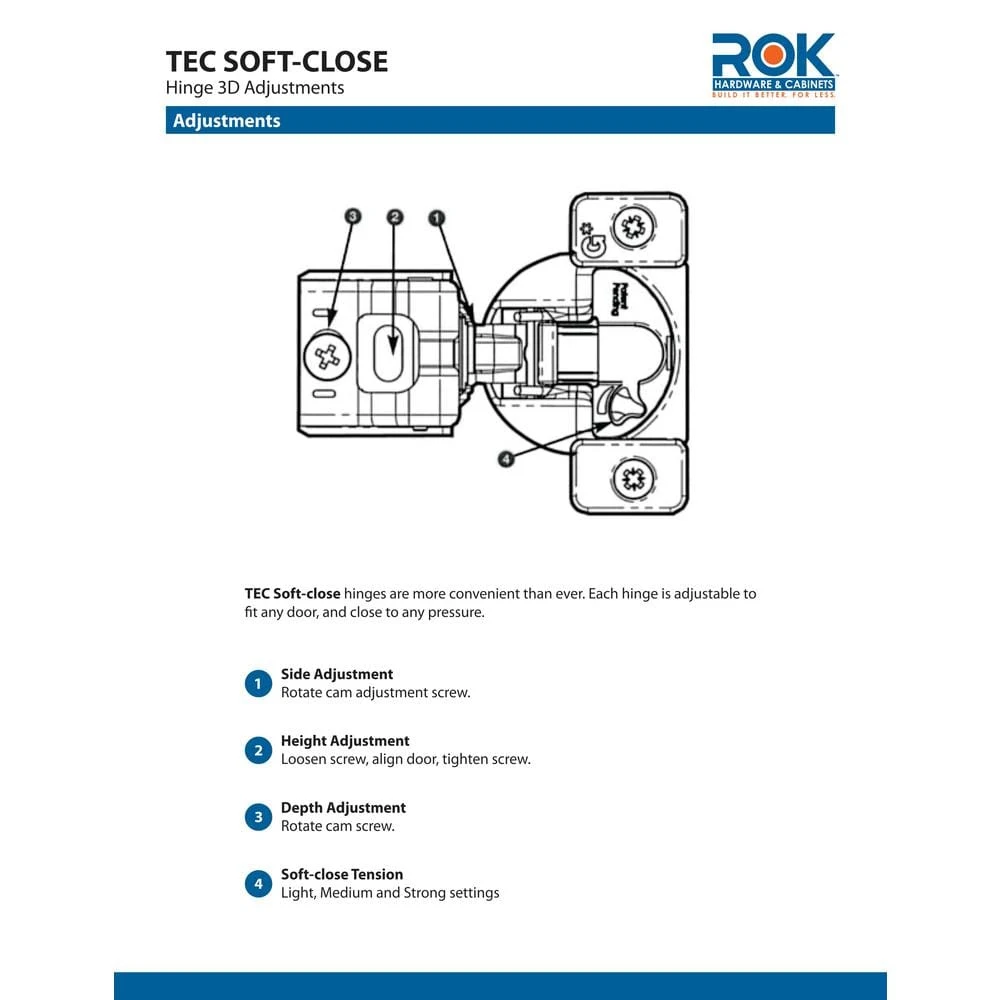

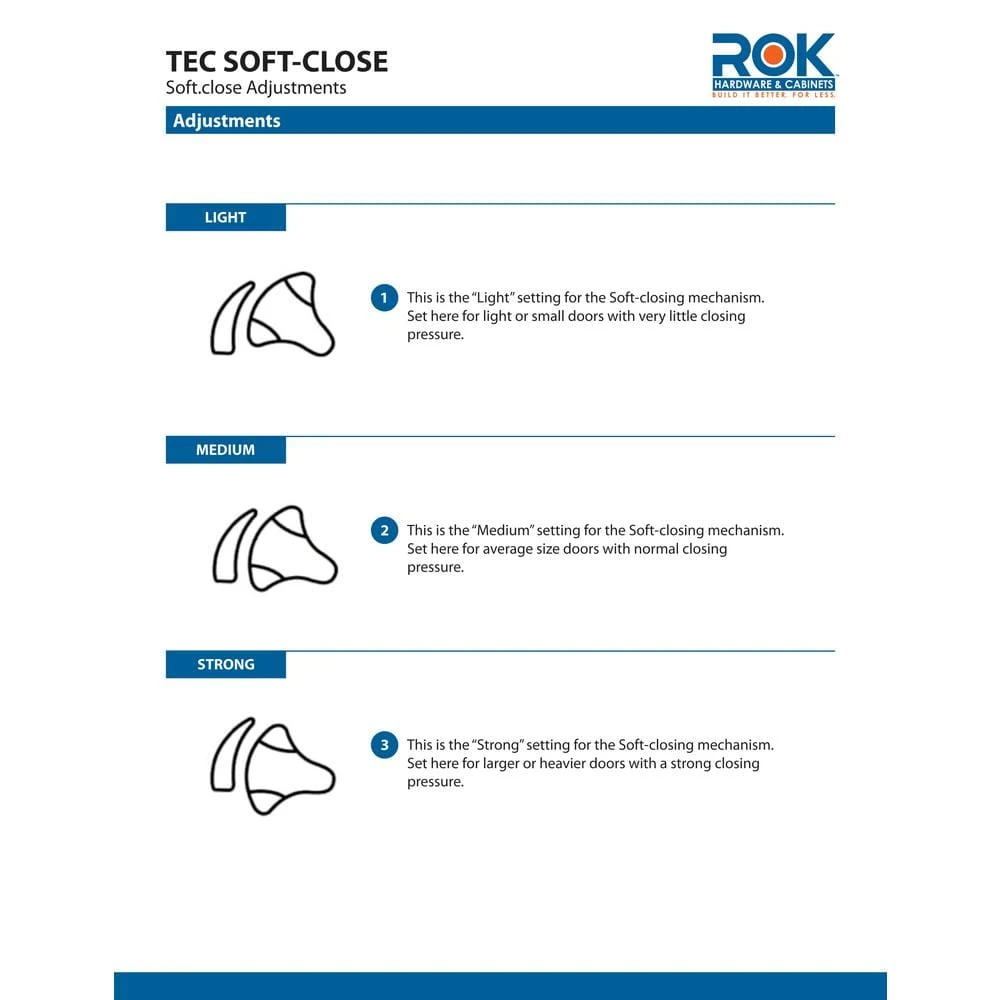

Face Frame Hinge with integrated Soft-close No additional installation of the Soft-close is required. A 3 tiered adjustment switch allows various levels of resistance in the damping system. Material: Steel, TEC hinges feature a solid metal hinge cup. All moving mechanism parts, including pivot pins, linkages and springs are hardened to ensure long-term durability Soft-close damper is premounted in the hinge cup Adjustment switch to regulate closing action 1-piece hinge and base plate combination 3 dimensional adjustment 11 mm (7/16 in.) cup drilling depth Front locating tabs position hinge on face frame Works with current Grass insertion machinery Includes installation screws: 2X #6 x 5/8 in. Wood Screws and 1X #10 x 3/4 in. Wood Screw per hinge Side Cam Adjustment: plus/minus 1.5 mm (1/16 in.) H Adjustment at mounting screw: plus/minus 2 mm (3/32 in.) D Cam Adjustment: plus 2.5 mm (3/32 in.), minus 5 mm (1/32 in.) Screw hole distance: 45 mm (1-25/32 in.) Cup Boring Diameter: 35 mm (1-3/8 in.) Hinge Overlay: 1/2 in. Series: TEC 864 Cabinet Type: Face Frame Fixing Type: Screw On Closing Mechanism: Soft Closing Hinge Opening Angle: 108° Base Plate: Wrap Mount.
